CNMG120404TK PR1535 (TLC40059)

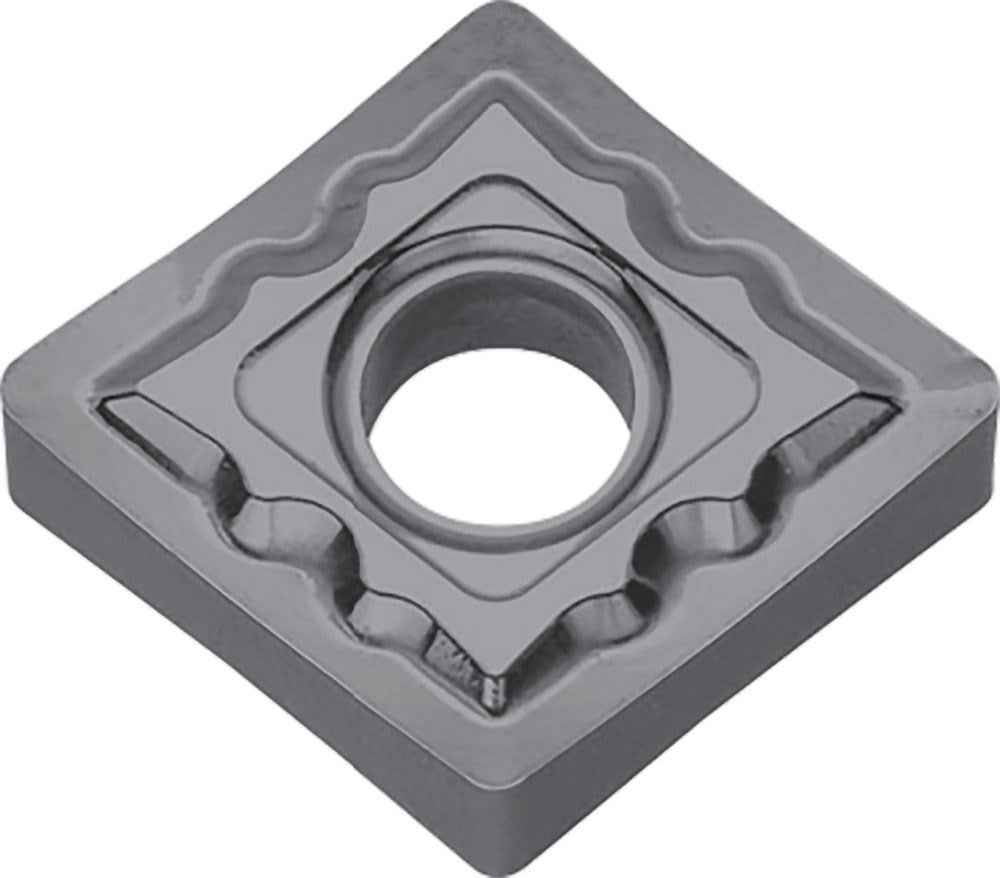

The CNMG120404TK PR1535 is a versatile indexable turning insert combining the TK open-groove chipbreaker with the highly tough PR1535 PVD-coated carbide grade in a small 0.4mm nose radius configuration. The small nose radius makes this insert well suited for profiling, contour turning, and finishing passes where dimensional precision is required, while the PR1535 grade and TK chipbreaker provide the toughness needed to handle interrupted conditions. The smooth sinuous groove of the TK chipbreaker is clearly visible in the image.

Key Features

• Insert shape: C (80° diamond) — 2 cutting edges per insert
• Size: 12mm x 04mm thickness x 04 nose radius (0.4mm) — small nose radius for profiling and finishing
• Chipbreaker: TK — open-groove geometry for reliable chip breaking across a broad feed range
• Grade: PR1535 (PVD-coated carbide) — high toughness for interrupted cuts and variable conditions in steel
• ISO application: P20–P40, M20–M35
• Edges: 2 cutting edges

Applications

Profiling, contour turning, finishing, and semi-finishing of carbon steel, alloy steel, and stainless steel, including where interrupted cuts are present. Compatible with CNMG-style toolholders. Available in packs of 10.
