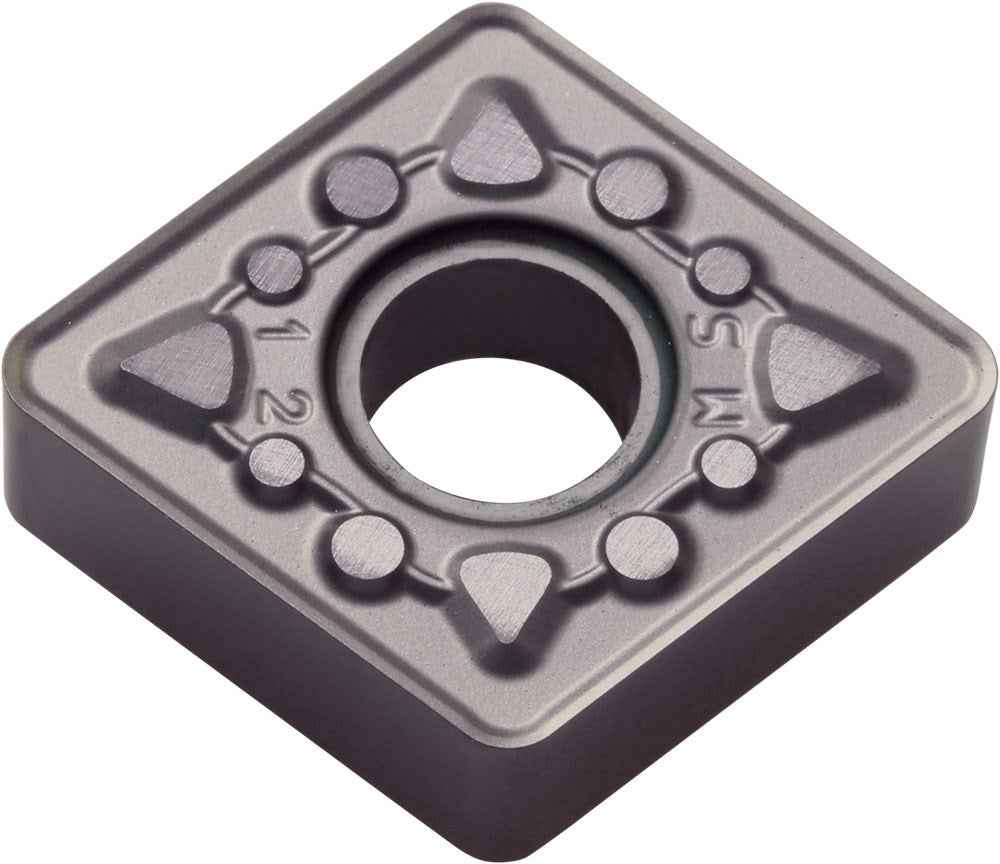

CNMG120404MS PR1535 (TLC50921)

The CNMG120404MS PR1535 is a precision indexable turning insert optimised for medium turning and finishing of steel and stainless steel. The smaller 0.4mm nose radius makes this insert ideal for lighter finishing passes and profiling where a sharp nose radius is required, while the PVD-coated PR1535 carbide grade delivers the toughness needed to handle interrupted cuts and variable conditions. The dark PVD coating provides excellent wear resistance and thermal stability.

Key Features

• Insert shape: C (80° diamond) — 2 cutting edges per insert
• Size: 12mm x 04mm thickness x 04 nose radius (0.4mm) — small nose radius for finishing and profiling
• Chipbreaker: MS — medium turning geometry, versatile chip control across a wide range of conditions
• Grade: PR1535 (PVD-coated carbide) — high toughness for steel and stainless in medium cutting conditions
• ISO application: P20–P40, M20–M35
• Edges: 2 cutting edges

Applications

Finishing, semi-finishing, and light interrupted turning of carbon steel, alloy steel, and stainless steel. The 0.4mm nose radius improves dimensional accuracy in profiling and contour turning. Compatible with CNMG-style toolholders. Available in packs of 10.
